PyTorch官网Tutorials笔记（一）

2021/04/14 深度学习 PyTorch 共 7672 字，约 22 分钟

🔗：https://pytorch.org/tutorials/beginner/basics/tensorqs_tutorial.html

1.1 张量（Tensors）

Tensors与NumPy的ndarrays类似，只是tensors还可以在GPU和其他硬件加速器上运行。两者经常共享一样的底层内存，不需要复制。

import torch

import numpy as np

1.1.1 初始化Tensor

  • 可以直接赋值
data = [[1,2],[3,4]]

x_data = torch.tensor(data)

x_data

tensor([[1, 2],
        [3, 4]])
  • 可以从Numpy array赋值
np_array = np.array(data)

x_np = torch.from_numpy(np_array)

x_np

tensor([[1, 2],
        [3, 4]])
  • 可以从另一个Tensor赋值
x_ones = torch.ones_like(x_data)

print(f"One Tensor: \n {x_ones} \n")

One Tensor:
 tensor([[1, 1],
        [1, 1]])

x_rand = torch.rand_like(x_data, dtype = torch.float)

print(f"Random Tensor: \n {x_rand} \n")

Random Tensor:
 tensor([[0.1883, 0.9876],
        [0.9896, 0.8167]])
  • With random or constant values
shape = (2,3,) #tuple
rand_tensor = torch.rand(shape)
ones_tensor = torch.ones(shape)
zeros_tensor = torch.zeros(shape)

print(f"Random Tensor: \n {rand_tensor} \n")
print(f"Ones Tensor: \n {ones_tensor} \n")
print(f"Zeros Tensor: \n {zeros_tensor}")

Random Tensor:
 tensor([[0.3669, 0.5733, 0.1213],
        [0.3788, 0.0999, 0.7571]])

Ones Tensor:
 tensor([[1., 1., 1.],
        [1., 1., 1.]])

Zeros Tensor:
 tensor([[0., 0., 0.],
        [0., 0., 0.]])

1.1.2 Tensor的属性

tensor = torch.rand(3,4)

print(f"Shape of tensor: {tensor.shape}")
print(f"Datatype of tensor: {tensor.dtype}")
print(f"Device tensor is stored on: {tensor.device}")

Shape of tensor: torch.Size([3, 4])
Datatype of tensor: torch.float32
Device tensor is stored on: cpu

1.1.3 Tensor的操作

🔗: https://pytorch.org/docs/stable/torch.html

将本地CPU的tensor移到GPU：

if torch.cuda.is_available():
    tensor = tensor.to('cuda')

indexing and slicing

tensor = torch.ones(4,4)
print('First row: ',tensor[0])
print('First column: ',tensor[:, 0])
print('Last cokumn:',tensor[...,-1])
tensor[:,1]=0
print(tensor)

First row:  tensor([1., 1., 1., 1.])
First column:  tensor([1., 1., 1., 1.])
Last cokumn: tensor([1., 1., 1., 1.])
tensor([[1., 0., 1., 1.],
        [1., 0., 1., 1.],
        [1., 0., 1., 1.],
        [1., 0., 1., 1.]])

Joining tensors

# torch.cat
t1 = torch.cat([tensor, tensor, tensor], dim = 1) #dim=1表示？
print(t1)

tensor([[1., 0., 1., 1., 1., 0., 1., 1., 1., 0., 1., 1.],
        [1., 0., 1., 1., 1., 0., 1., 1., 1., 0., 1., 1.],
        [1., 0., 1., 1., 1., 0., 1., 1., 1., 0., 1., 1.],
        [1., 0., 1., 1., 1., 0., 1., 1., 1., 0., 1., 1.]])

#torch.stack 查看https://pytorch.org/docs/stable/generated/torch.stack.html

Arithmetic operations

# 矩阵乘法，y1,y2,y3得到的是同一个值
y1 = tensor @ tensor.T #tensor.T表示tensor的转置？
y2 = tensor.matmul(tensor.T)
y3 = torch.rand_like(tensor) #rand_like?
torch.matmul(tensor, tensor.T, out=y3)

#点乘(element-wise product)
z1 = tensor * tensor
z2 = tensor.mul(tensor)
z3 = torch.rand_like(tensor)
torch.mul(tensor, tensor, out=z3)

tensor([[1., 0., 1., 1.],
        [1., 0., 1., 1.],
        [1., 0., 1., 1.],
        [1., 0., 1., 1.]])

Single-element tensors

可以将只有一个元素的tensor转换为Python的整数、浮点数类型

agg = tensor.sum()
agg_item = agg.item() #item()可以转换类型
print(agg_item, type(agg_item))

12.0 <class 'float'>

In-place operations

将结果按照位置操作后赋值到本身的操作叫in place，和一般操作比起来只需要加上后缀_就可以

print(tensor, "\n")
tensor.t_()
print(tensor)

tensor([[6., 6., 6., 6.],
        [5., 5., 5., 5.],
        [6., 6., 6., 6.],
        [6., 6., 6., 6.]])

tensor([[6., 5., 6., 6.],
        [6., 5., 6., 6.],
        [6., 5., 6., 6.],
        [6., 5., 6., 6.]])

print(tensor, "\n")
tensor.add_(5)
print(tensor)

tensor([[6., 5., 6., 6.],
        [6., 5., 6., 6.],
        [6., 5., 6., 6.],
        [6., 5., 6., 6.]])

tensor([[11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.]])

print(tensor, "\n")
tensor.t() #不加后缀则tensor本身不变
print(tensor)

tensor([[11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.]])

tensor([[11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.],
        [11., 10., 11., 11.]])

因为in place操作会改变变量本身的值，所以不提倡

1.1.4 与Numpy的衔接

Tensor到Numpy array

t = torch.ones(5)
print(f"t: {t}")
n = t.numpy()   #用numpy()就好了
print(f"n: {n}")

t: tensor([1., 1., 1., 1., 1.])
n: [1. 1. 1. 1. 1.]

#对tensor的操作也会影响到numpy array
t.add_(1)
print(f"t: {t}")
print(f"n: {n}")

t: tensor([2., 2., 2., 2., 2.])
n: [2. 2. 2. 2. 2.]

Numpy array到Tensor

n = np.ones(5)
t = torch.from_numpy(n) #用from_numpy()就行

#对numpy array的操作同样也影响到tensor
np.add(n, 1, out=n)
print(f"t: {t}")
print(f"n: {n}")

t: tensor([2., 2., 2., 2., 2.], dtype=torch.float64)
n: [2. 2. 2. 2. 2.]

1.2 导入数据集（Datasets & Dataloaders）

Further reading: torch.utils.data API

Pytorch中有两个函数：

  • torch.utils.data.DataLoader
  • torch.utils.data.Dataset

Pytorch的domain libraries中提供了已经加载的数据集以及对该数据集处理的具体函数，可以用于测试自己写的model，具体可以在这些地方找到：

1.2.1 加载数据集

以Fashion-MNIST为例导入数据集

import torch
from torch.utils.data import Dataset
from torchvision import datasets
from torchvision.transforms import ToTensor, Lambda
import matplotlib.pyplot as plt      #画图

training_data = datasets.FashionMNIST(
    root="data",                      #root指定data的目录
    train=True,                       #是否训练，区分训练集和测试集
    download=True,                    #在root中没有data就在互联网上下载
    transform=ToTensor()              #数据有时不适合直接训练，需要改变格式叫做transform
)

test_data = datasets.FashionMNIST(
    root="data",
    train=False,
    download=True,
    transform=ToTensor()
)

1.2.2 访问和可视化数据集（Iterating and Visualizing the Dataset）

labels_map = {
    0: "T-Shirt",
    1: "Trouser",
    2: "Pullover",
    3: "Dress",
    4: "Coat",
    5: "Sandal",
    6: "Shirt",
    7: "Sneaker",
    8: "Bag",
    9: "Ankle Boot",
}
figure = plt.figure(figsize=(8,8))   #figsize?
cols, rows = 3, 3
for i in range(1, cols*rows + 1):
    sample_idx = torch.randint(len(training_data), size=(1,)).item()   #randint表示[a,b]中的随机数
    img, label = training_data[sample_idx]
    figure.add_subplot(rows, cols, i)
    plt.title(labels_map[label])
    plt.axis("off")
    plt.imshow(img.squeeze(), cmap="gray")
plt.show()

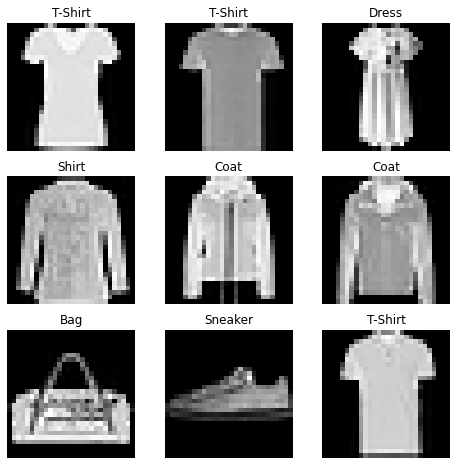

png01

1.2.3 Creating a Custom Dataset for your files

以 FashionMNIST 为例，iamges存在了img_dir,labels存在了CSV：annotations_file

import os
import pandas as pd
from torchvision.io import read_image

class CustomImageDataset(Dataset):   #transform表示转换特征格式，target_transform改变标签格式
    def __init__(self, annotation_file, img_dir, transform=None, target_transform=None):
        self.img_labels = pd.read_csv(annotation_file)
        self.img_dir = img_dir
        self.transform = transform
        self.target_transform = target_transform

    def __len__(self):
        return len(self.img_labels)

    def __getitem__(self, idx):
        img_path = os.path.join(self.img_dir, self.img_labels.iloc[idx,0])
        image = read_image(img_path)
        label = self.img_labels.iloc[idx,1]
        if self.transform:
            image = self.transform(image)
        if self.target_transform:
            label = self.target_transform(label)
        sample = {"image": image, "label":label}
        return sample

A custom Dataset class must implement three functions:

  • __init__

  • __len__：返回数据集中的样本数

  • __getitem__

The __getitem__ function loads and returns a sample from the dataset at the given index idx. Based on the index, it identifies the image’s location on disk, converts that to a tensor using read_image, retrieves the corresponding label from the csv data self.img_labels, calls the transform functions on them(if applicable), and returns the tensor image and corresponding label in a Python dict.

1.2.4 DataLoaders

在实际训练模型时，需要能够reshuffle the data，加速data retrieval。

from torch.utils.data import DataLoader

train_dataloader = DataLoader(training_data, batch_size=64, shuffle=True)  #batch_size?
test_dataloader = DataLoader(test_data, batch_size=64, shuffle=True)

For finer-grained control over the data loading order, take a look at Samplers

# Display image and label.
train_features, train_labels = next(iter(train_dataloader))
print(f"Feature batch shape: {train_features.size()}")
print(f"Labels batch shape: {train_labels.size()}")
img = train_features[0].squeeze()
label = train_labels[0]
plt.imshow(img, cmap="gray")
plt.show()
print(f"Label: {label}")

Feature batch shape: torch.Size([64, 1, 28, 28])
Labels batch shape: torch.Size([64])

png02

Label: 2

1.3 Transforms

The torchvision.transforms module offers several commonly-used transforms out of the box.

需要将数据和标签转换为适合训练的格式，就是transform。分别对应transform和target_transform。

The FashionMNIST features are in PIL Image format, and the labels are integers.For training, we need the features as normalized tensors, and the labels as one-hot encoded tensors. To make these transformations, we use ToTensor and Lambda

scatter用法可看：scatter_

from torchvision import datasets
from torchvision.transforms import ToTensor, Lambda

ds = datasets.FashionMNIST(
    root="data",
    train=True,
    download=True,
    transform=ToTensor(),
    '''
    torch.zeros create a zero tensor of size 10(数据集中共有10种标签) and calls scatter_ which assigns
    a value=1 on the index as given the lable y.
    '''
    target_transform=Lambda(lambda y: torch.zeros(10, dtype=torch.float).scatter_(0, torch.tensor(y), value=10))
)

ToTensor

ToTensor converts a PIL image or NumPy ndarray into a FloatTensor, and scales the image’s pixel intensity values in the range[0.,1.]

Lambda Transforms

Lambda transforms apply any user-defined lambda function.
